Yar Yi Lifting Column YA-L91
Yar Yi's YA-L series lifting columns are specifically designed for ergonomic desks and workstations. Using multiple YA-L series lifting columns compatible with Yar Yi control boxes and YA-S series control handles, it is possible to synchronize movements and to smoothly and smoothly control the work surface. All YA-K series control boxes have a backup battery option of less than 0.1W. Our extensive columns provide customers with the solutions they need to meet their work environment project requirements. YA-L91 has a two-stage telescopic outer tube.
General Features:
1. Maximum load: 800N in push
2. Maximum speed at full load: 38mm/s (with 800N in a push condition)
3. Minimum installation dimension: 650mm
4. Stroke: 500mm
5. Highest height: 1150mm
6. Dimension of outer tube (L*W): 70*70mm
7. Two stage outer tube with rectangular appearance
8. Color: Silver gray
9. Operational temperature range: -45°C~+75°C
10. Operational temperature range at full performance: +5°C~+45°C
11. Higher duty cycle (25%),
12. With narrow top and wide bottom configuration
Standard Technical Sheet:

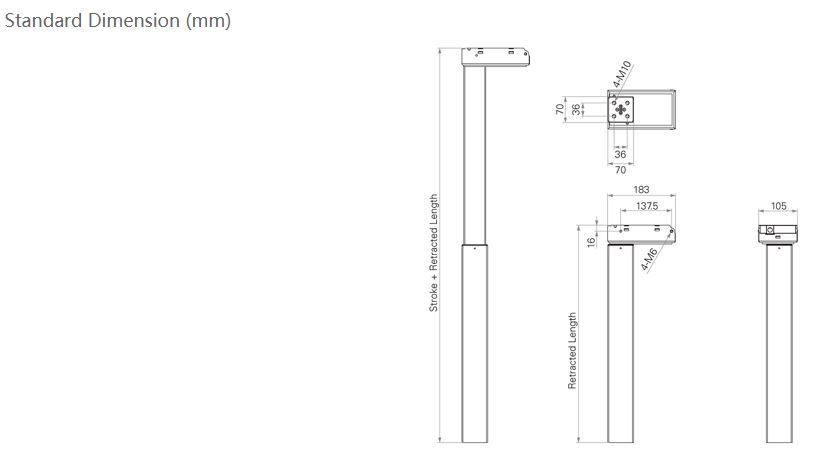

Drawing:
