Yar Yi Lifting Column YA-B3

        YA-B3 linear actuator column (Yar Yi) is one column product development for medical and work environments, such as hospital beds, nursing home beds, treatment units and height adjustable desk applications. The two outer tube YA-B3 formula can provide a stable operation of the lift, and can provide minimal dimensions and long stroke selection and so on.

         General Features

         1. Voltage of motor: 12V DC, 24V DC,
         2. Maximum push force: 2,000N (only thrust),
        3. Maximum speed at full load: 12mm/s ( load 500N)
        4. The slowest speed at full load: 5mm / s (load 2,000N)
        5. Stroke: 20~800mm

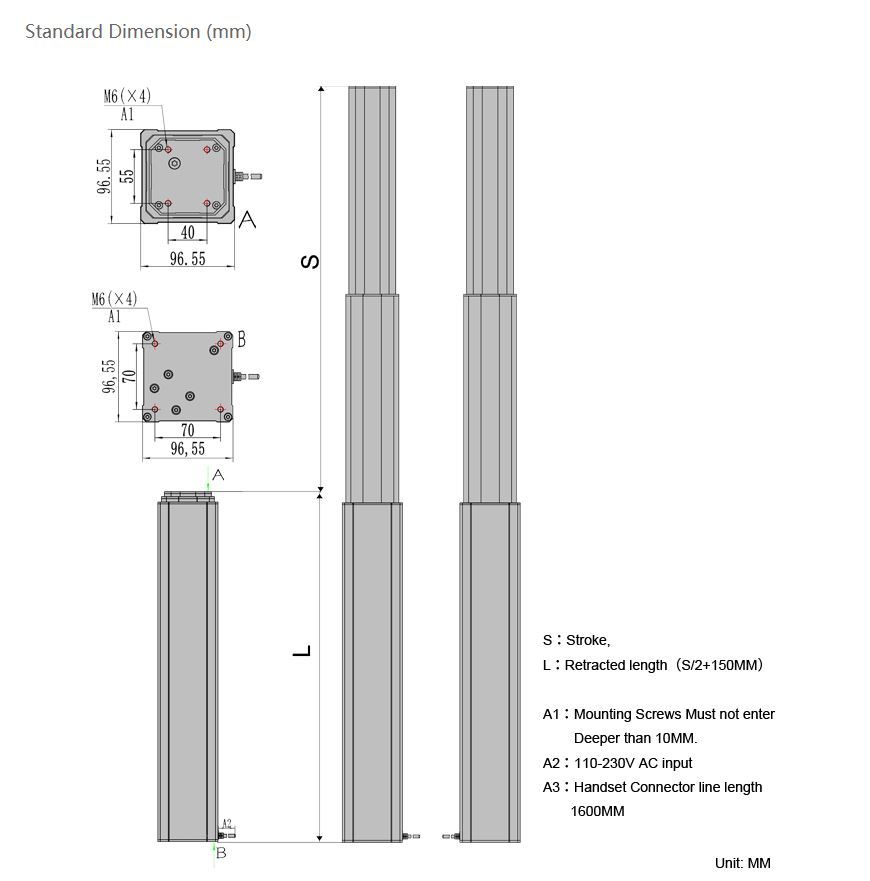

        6. Minimum dimensions: Stroke /2+ 150 mm (limited to 400 mm stroke or less)
                                                Stroke /2+ 180 mm (400 mm stroke above)
        7. Color: Silver gray
        8. IP rating: IP54D
        9. Operational temperature range: -45°C~+75°C
        10. Operational temperature range at full performance: +5°C~+45°C
        11. Higher duty cycle (25%),
        12. Other options: Hall sensor
        13. High strength metallic zinc alloy housing protects motor and gear
        14. Built-in limit switches (not adjustable)

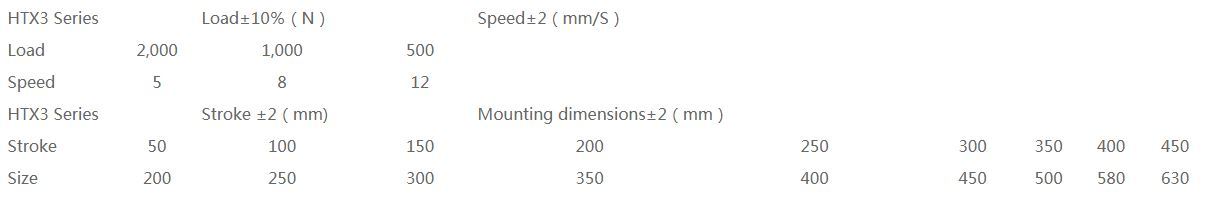

         Motor Selection:
