YA730
YA730

Item specifics

颜色
银色为主,黑色为辅

Product review

Description

Heavy duty linear actuator YA730

         YarYi's YA730 series in-line linear actuators are designed for heavy-duty applications developed in harsh environments where there is a need for high lifting capacity and retention. Yar Yi provides well-known quality of YA730 , which assures you of long-life maintenance-free products.

          General Features

          1. Voltage of motor: 12V DC, 24V DC, 36V DC, 48V DC
          2. Maximum load: 12,000N in pull/push
          3. The slowest speed: 6.5mm / s (Load 12,000N)
          4. Stroke: 50mm~800mm
          5. Minimum dimensions: Stroke + 200 mm(S<300mm)
                                                  Stroke + 250 mm (S>300mm)
          6. Color: Silver gray or black
          7. IP rating: IP66
         8. Operational temperature range: -20°C~+45°C
         9. Higher duty cycle (25%)
         10. Other options: Hall sensor, Potentiometer
         11. High strength metallic zinc alloy housing protects motor and gear
          12. Built-in limit switches (not adjustable)

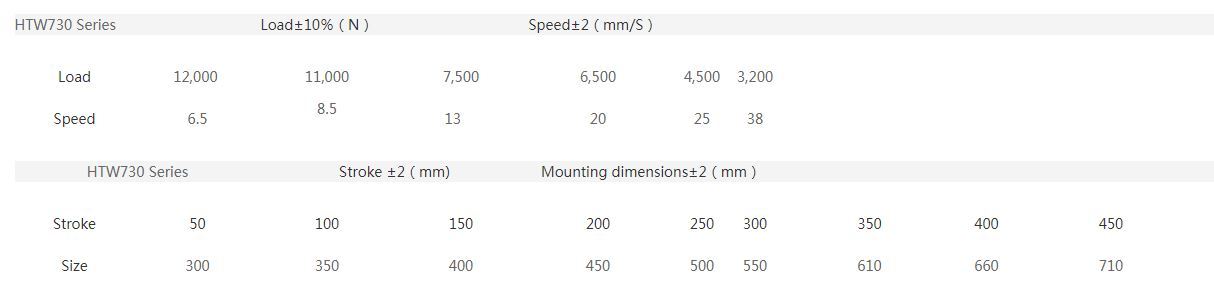

           Model Selection:

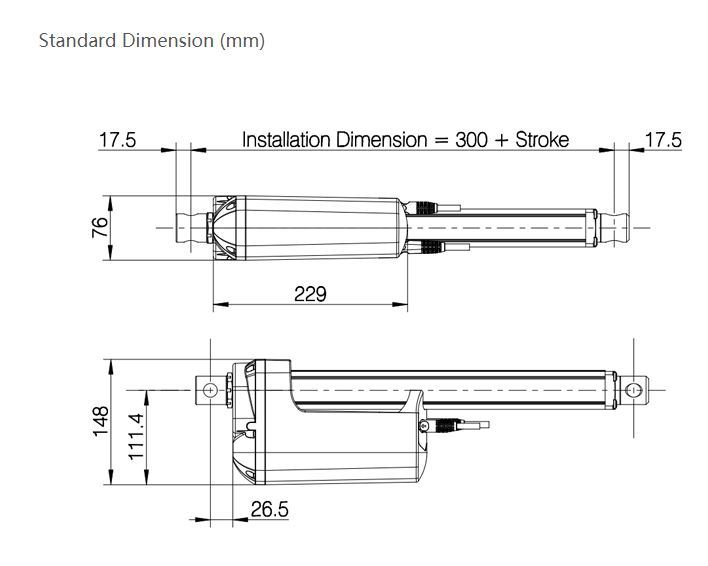

           Drawing:
