Tubular linear actuator YA35

          YarYi's YA35 series of inline linear actuators are designed for low load industrial applications requiring up to IP67K dust and liquid ingress protection. It is a powerful product for industrial applications. The compact size allows the YA35 to install a small space in the application without worrying about its effects. Hall sensors are optional for the YA35, allowing for synchronization and position feedback, ventilation systems or food and beverage automation equipment as well as other industry performance ranges.         General Features

         1. Motor voltage: 12V DC, 24V DC
         2. Maximum load: 1200N pull / push
         3. Maximum speed at full load: 60mm / s (load 50N)
         4. The slowest speed at full load: 1.5mm / s (loading 1,200N)
         5. Stroke: 20~500mm(customized)
         6. Minimum size: Stroke + 220 mm, stroke + 240 mm(S>300mm)
         7. Color: black
         8. IP rating: IP67K
         9. Operating temperature range: -45 ° C ~ + 75 ° C
        10. Full performance operating temperature range: + 5°C ~ + 45°C
        11. Duty cycle: 10%, 2min on, 18min off
        12. Other options: Hall sensor, synchronized controller
        13. High-strength metal 406 carbon steel housing protects motors and gears
        14. limit switch: No(It is recommended to match our synchronized controller).

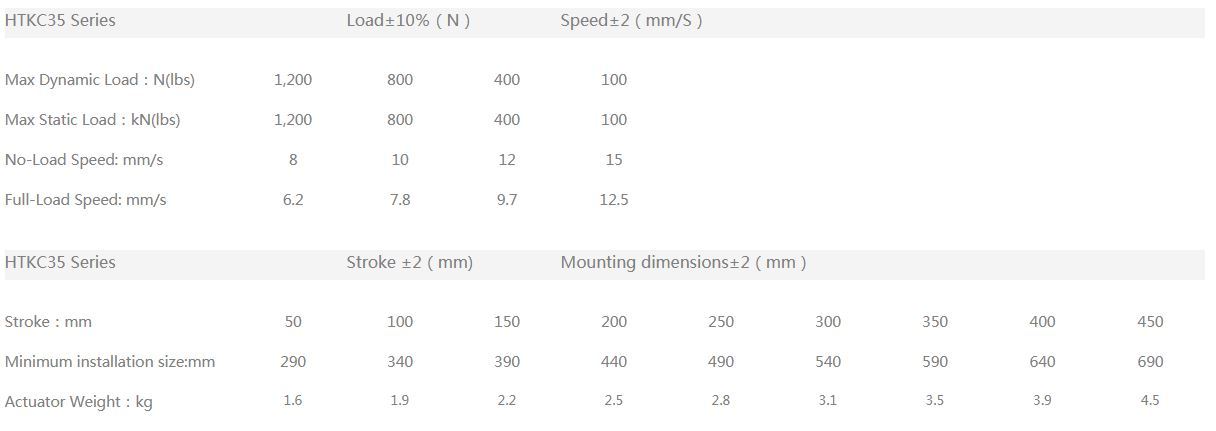

         Model Selection:

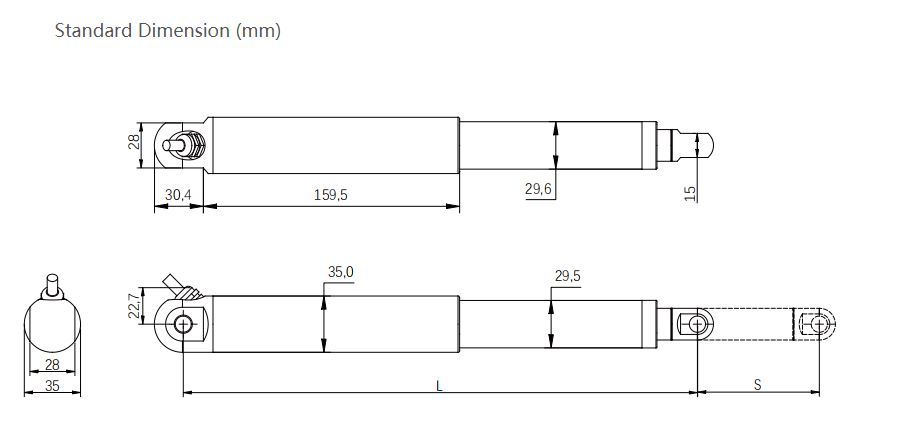

           Drawing:
