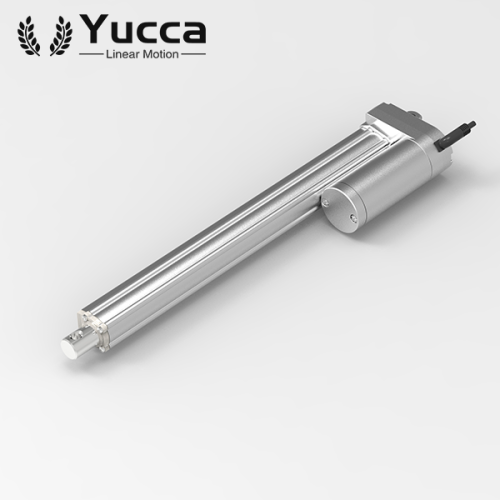

Small dimension electric linear actuator with metal gear load 2700N
Small dimension electric linear actuator with metal gear load 2700N
Small dimension electric linear actuator with metal gear load 2700N
Small dimension electric linear actuator with metal gear load 2700N
Small dimension electric linear actuator with metal gear load 2700N
Small dimension electric linear actuator with metal gear load 2700N
Model
YA180

Item specifics

Brand
Yucca
Motor
Worm gear
Color
Silver gray or black
Certification
CE, ROHS, ISO9001-2008
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Standard stroke
10mm-800mm
Duty cycle
10%
Commutation
Brush/Brushless
Motor power
50W
Ambient temperature
-25°C~+65°C

Product review

Description

Small eimension electric linear actuator with metal gear load 2700N
General Features
Voltage
12V DC, 24V DC
Stroke
stroke+105mm(stroke<300mm); stroke+120mm(stroke≥300mm)
Load
2700N
Speed
10mm/s(no load); 6.8mm/s(full load)
IP
65
Stroke
10-800mm
Noise
50db
Matierial
Metallic zinc alloy
Limit switches
Built in
Gear
Metal gear
